Components Simulation
Objective
Simulate the effect of the forces on a bar with some gears.
Reading the Shaft-and-Gear Model
This study combines a supporting bar or shaft with gears. The engineering question is how gear loads travel through the shaft to its supports, producing bending and possibly torsion. The retained plots show a simulation outcome, but the original forces and boundary conditions are needed before its numerical values can be independently checked.
Testing and Real-World Use
This could be tested by checking force and moment balance at the shaft supports before comparing a documented beam model with the three-dimensional simulation. The method is useful for understanding how gear loads reach a supporting structure, while numerical reproduction requires the original geometry, supports, materials and mesh.

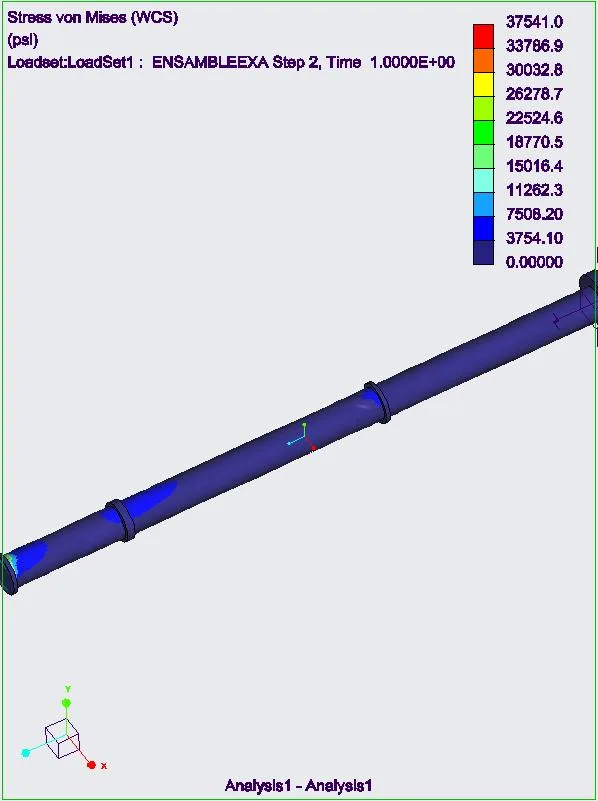

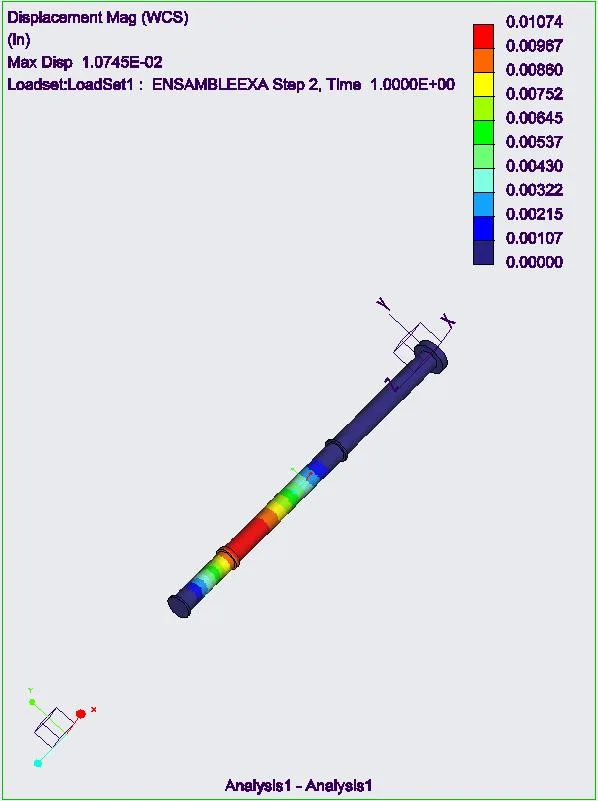

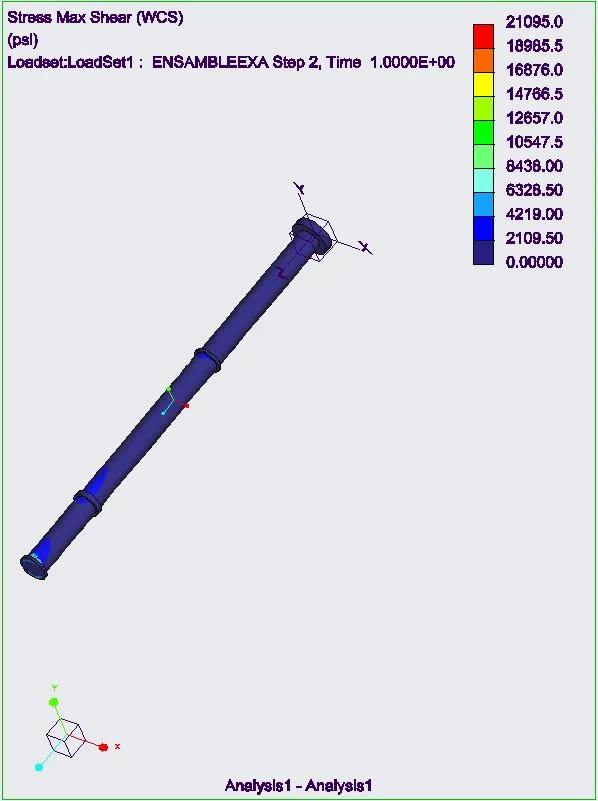

Results
